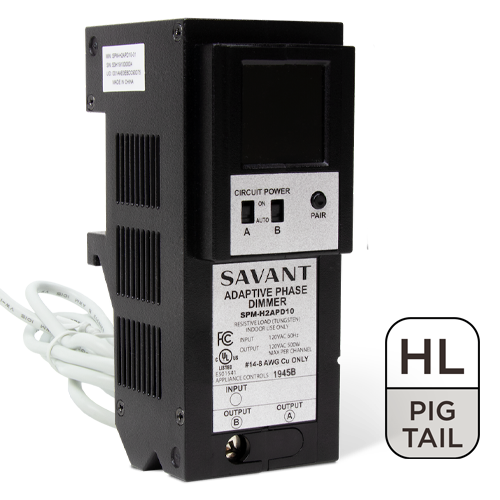

APD LIGHTING MODULE

$250.00

Dual Adaptive Phase Dimmer Lighting Module is is compatible with a wide range of load types, including LED, incandescent, halogen, electronic-low-voltage (solid state) transformers, magnetic-low-voltage transformers, fluorescents, and dimmable compact fluorescents. This dimmer eliminates much of the guess-work associated with selecting the right dimmer technology for the load, and prevents the need to replace the dimmer if the load type changes in the future.

Breaker Type:
Neutral:

Dual Adaptive Phase Dimmer Lighting Module is is compatible with a wide range of load types, including LED, incandescent, halogen, electronic-low-voltage (solid state) transformers, magnetic-low-voltage transformers, fluorescents, and dimmable compact fluorescents. This dimmer eliminates much of the guess-work associated with selecting the right dimmer technology for the load, and prevents the need to replace the dimmer if the load type changes in the future.

KEY FEATURES

  • QO, PON works with 3/4 inch Schneider/Electric Square D™ QO™ plug-on neutral load centers.

  • QO, Pigtail works with 3/4 inch Schneider/Electric Square D™ QO™ load centers.

  • CH, PON works with 3/4 inch Eaton CH™ plug-on neutral load centers.

  • CH, Pigtail works with 3/4 inch Eaton CH™ load centers.

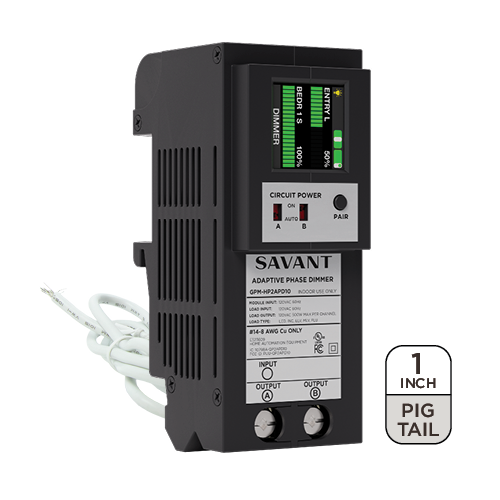

  • 1-INCH, Pigtail compatible with Schneider Homeline, Eaton BR, Siemens, and GE Powermark Gold load centers with a one-inch on-center bus bar

  • Control capability for dimming two loads up to 500 VA (volt-ampere)

  • Compatible with a variety of load types

  • Automatically detects load type and determines the appropriate dimming type

  • Built-in Energy monitoring; +/- 3% accuracy / 1 sec sample time

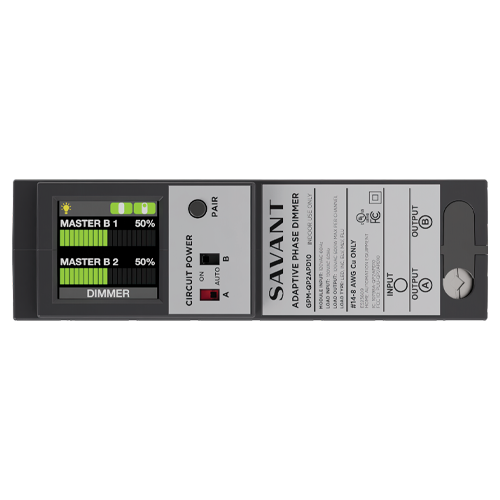

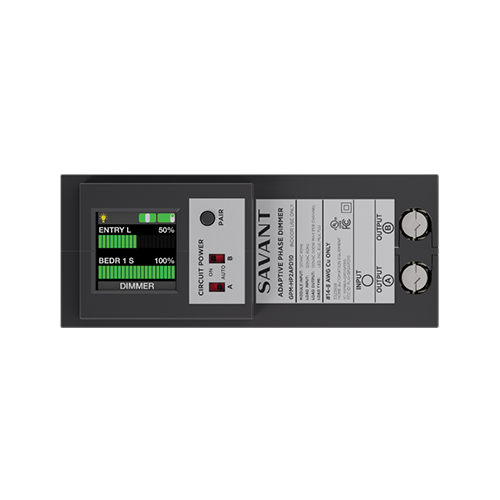

  • Color LCD display for easy load identification, load status and energy usage

  • Reset button / Manual load test switch

  • Communicates over Bluetooth Low Energy

  • Simple to configure and deploy using RacePoint Blueprint Lighting Manager or the Savant Power & Light app

  • Onboarding from an iOS device
